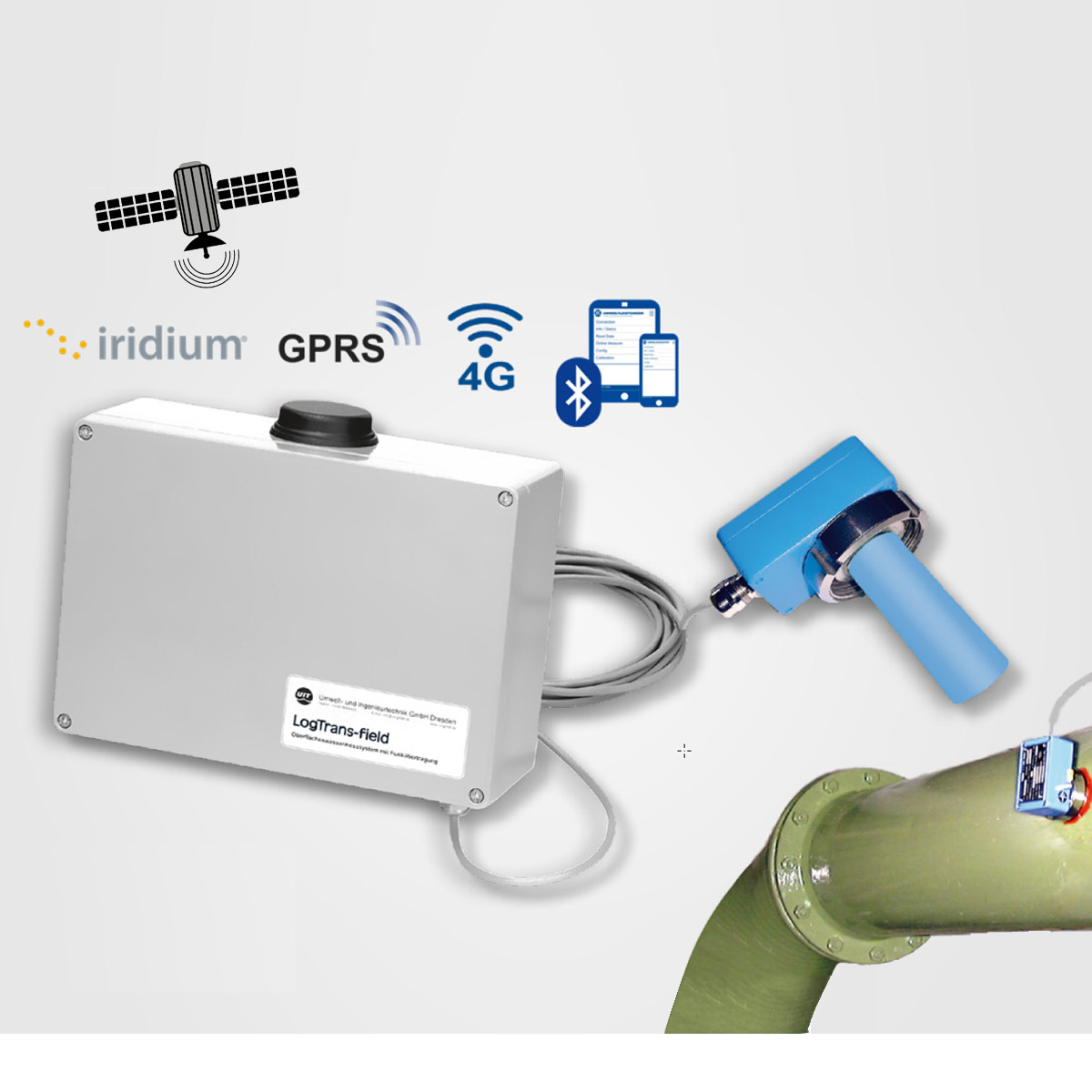

SENSOpipe – Flow Rate Monitoring in Pipes
The SENSOpipe measurement system allows the determination of the volume flow in fully filled pipes. For this purpose, the flow velocity in the pipe is measured and the volume flow is calculated. The SENSOpipe measurement system is compatible with the LogTrans-field data logger.
For more information about data logger click here.
For more information about software SENSOweb click here.
To request more information and prices call + 49 351 88646-00 or e-mail us: info@uit-gmbh.de.
Application areas
- Measurement of flow rate in pipes
- Deduction of flow rate from measured average flow velocity at given pipe diameter
Advantages
- Cost-efficient measurement of flow rate, applicable up to large pipe diameters
- Retrofit in existing pipelines possible
- Integrated data logger and data transmission technique
- Alarm functionality
| SENSOpipe | |
|---|---|
| Measuring principle | Magnetic-inductive, in pipe installation – one installation point for velocity measurement and calculation of flow rate |
| Measuring range | 0.02 ... 2.5 m/s alternatively 0.1 ... 10 m/s |
| Accuracy | ± 1% of measured velocity or ± 0.03 m/s under reference conditions – the respectively larger value applies |
| Electrical conductivity | Minimum conductivity of water: 10 μS/cm |
| Installation sleeve | Necessary installation sleeve to be mounted to the pipe |
| Data logger LogTrans-field | |
| Inputs | 6 analogue inputs/ 16 Bit resolution, 2 counter inputs |
| Interfaces | MODBUS, RS 485; RS 232 for connection of camera K1 |
| Interfaces | USB 2.0 for parameterization – optional Bluetooth LE |
| Memory | 512 MB for data und 512 MB for images |
| Wireless data transfer | Integrated 4 band GSM/GPRS modem – optional 3G or 4G |
| Alarm notification | Two channels with up to 6 alarm notifications |
| Power supply | Accumulator 12 V, 6.5 Ah for data logger and sensor |
| Case/dimensions | Aluminum 330 x 290 x 115 mm, incl. antenna, IP 65 |
Illustrations and descriptions may vary. The plant / product is subject to change depending on technical updates.
We will gladly give you an individual offer.
- Bluetooth interface
- Wireless data transfer via 3G or 4G (if available)
