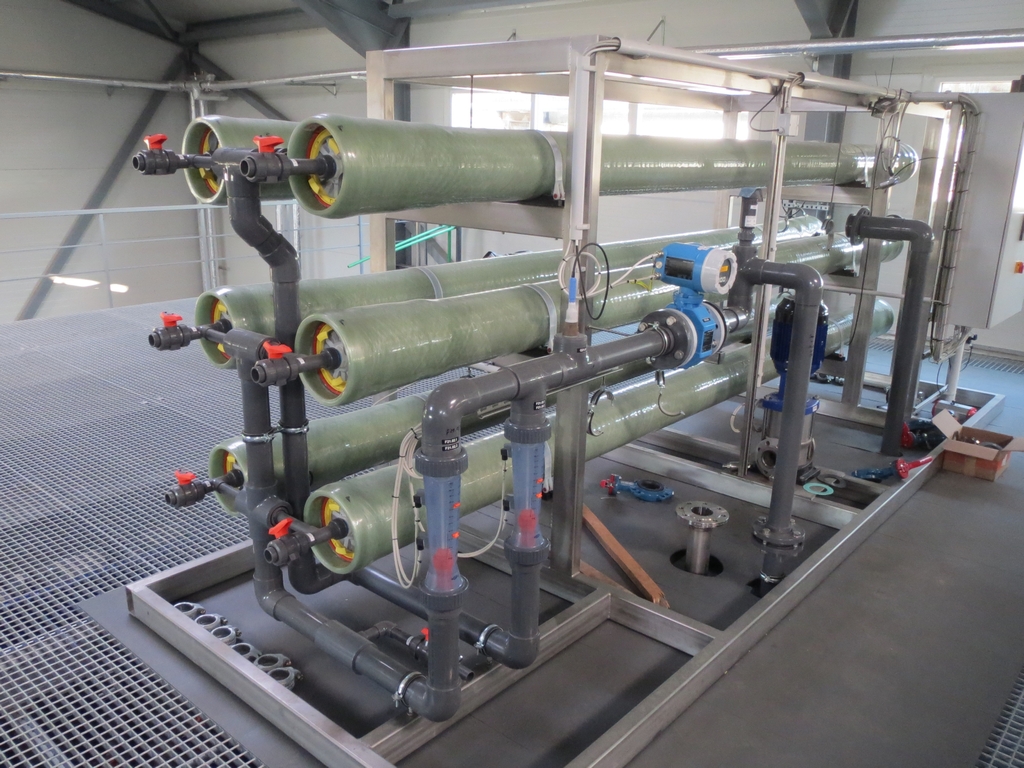

Nanofiltration Plant
This technology is suitable for the concentration of waste water and to treat the concentrate in a bypass-treatment. Another advantage is the size reduction of the following equipment and a cost reduction.
To request more information and prices call + 49 351 88646-00 or e-mail us: info@uit-gmbh.de.
Application / Equipment
- Separation of sodium sulphate and sulphuric acid out of industrial waste water and process water
- Membrane surface: 41 m² per element
- Flux performance: approximately 25 - 35 cbm/h
- Including prefiltration
- Prefiltration and booster pump on a separate stainless steel frame
| Technical data - plant | |
|---|---|
| Membrane module-type | Filmtec XLE 440 |
| Amount of modules | 24 |
| Separation limit | approx. 1000 Dalton |
| Membrane surface | 41 m² per element |
| Flow | 25 - 35 cbm/h, membrane filtration with vooster step (2-pass) |
| Limit pH-value | 2 - 11 |
| Material module housing | glass reinforced plastics (GRP) |
| Material seal | FPM |
| Plant dimensions | Length x width x height totally approx. 4800 x 2250 x 1850 mm |
| Booster pumps | up to 22 bar, on separate rack |
| Prefiltration | stainless steel bar filter station, 10 µm filter fineness |
| Electronic Technics | |
| Power consumption | 400 V, 50 Hz, 10 kW |
| Power consumption High pressure rack |
400 V, 50 Hz, 30 kW |
| Electronic control | Booster pump with frequency converter 1 x PumpDrive |
| Process control | fully equipped ready-to-connect control cabinet |
| Measurement Technics | |
| Flow meter inflow | 1 x magnetic inductive with control connection |
| Flow meter filtrate 1. and 2. step | 2 x float type-flow meter |
| Flow meter filtrate | 1 x magnetic inductive with control connection |
| Quality | 1 x conductivity with switch contact |
| Pressure sensor | 2 x prefiltration, 1 x feed, 1 x concentrat with control connection |
Illustrations and descriptions may vary. The plant / product is subject to change depending on technical updates.
We will gladly give you an individual offer.
