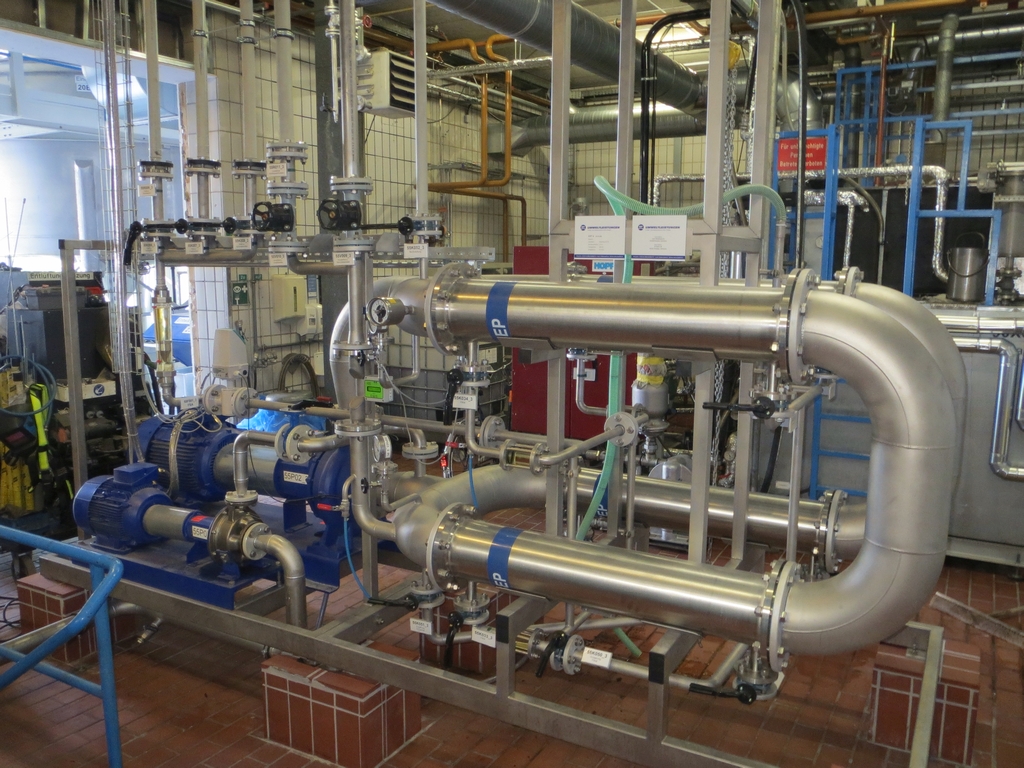

Ultrafiltration Plant
The membrane filtration plant can be used to separate oil and emulsions from industrial waste and process water. Typical applications are the treatment of coolants from the automotive industry, softener from the synthetic materials industry and machine oil as an impurity in industrial waste water.
Special ceramic membranes allow an efficient and highly selective separation of organic and mineral particles, oils and polymers from aqueous phase / water.
To request more information and prices call + 49 351 88646-00 or e-mail us: info@uit-gmbh.de.
Scope of application / equipment
- Separation of oil and emulsions from industrial process and waste water
- Cutoff: 150 or 300 kD
- Flux: approx. 3 - 5 cbm/h
- inclusive pre-filtration
- Pumps and module block on separate stainless steel frameworks
| Technische Data - Plant | |
|---|---|
| Membrane module type | KLEANSEP K37B |
| Number of modules | 4 |
| Cutoff | 150 / 300 kilo-dalton |
| Membrane area | 5,74 m² per module |
| Flux performance | 3 - 5 m³/h |
| Membrane material | Ceramic materials TiO2 - Al2O3 Ceramic membrane ZrO2 / TiO2 |
| Module housing material | Stainless steel 1.4404 |
| Seal material | FPM (Viton) |
| Dimensions | length x width x height total approx. 4000 x 1400 x 1800 mm Pumpe framework approx. 1850 x 1400 x 1700 mm Module framework approx. 2210 x 1400 x 1400 mm |
| Electronic Technics | |
| Connected values | 400 V, 50 Hz, max. 50 kW |
| Electronic control | 1 x frequency controlled 1 x soft starter |
| Process control | fully equipped ready-to-connect control cabinet |
| Measurement Technics | |
| Flow meter filtrat | 1 x magneto-inductive flowmeter with control connection |
| Flow meter filtrat | 1 x variable area flowmeter for a fast visual registration |
| Flow meter emulsion | 1 x acoustic discharge measurement with control connection |
| Temperature sensor | 1 x with switch contact |
| Pressure sensor | 1 x plant-inflow; 1 x plant outflow |
Illustrations and descriptions may vary. The plant / product is subject to change depending on technical updates.
We will gladly give you an individual offer.
