Iridium products
This category is currently under construction. You will find the first products here in the next few days.
A selection of Iridium products is already shown in the linked catalogues.
On request, we will be happy to check compatibility with other parameters for you.
To request more information and prices call +49351/88646-00 or e-mail us: info@uit-gmbh.de.
OFW-sat

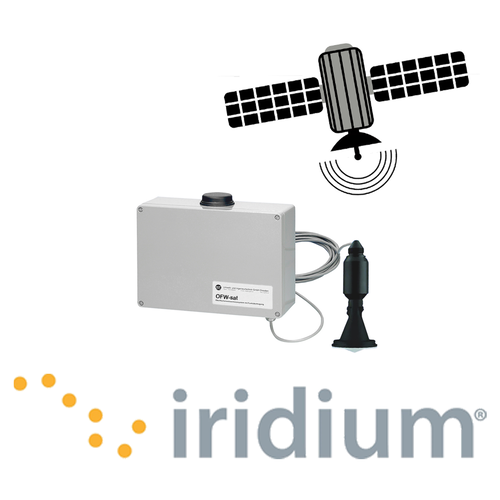

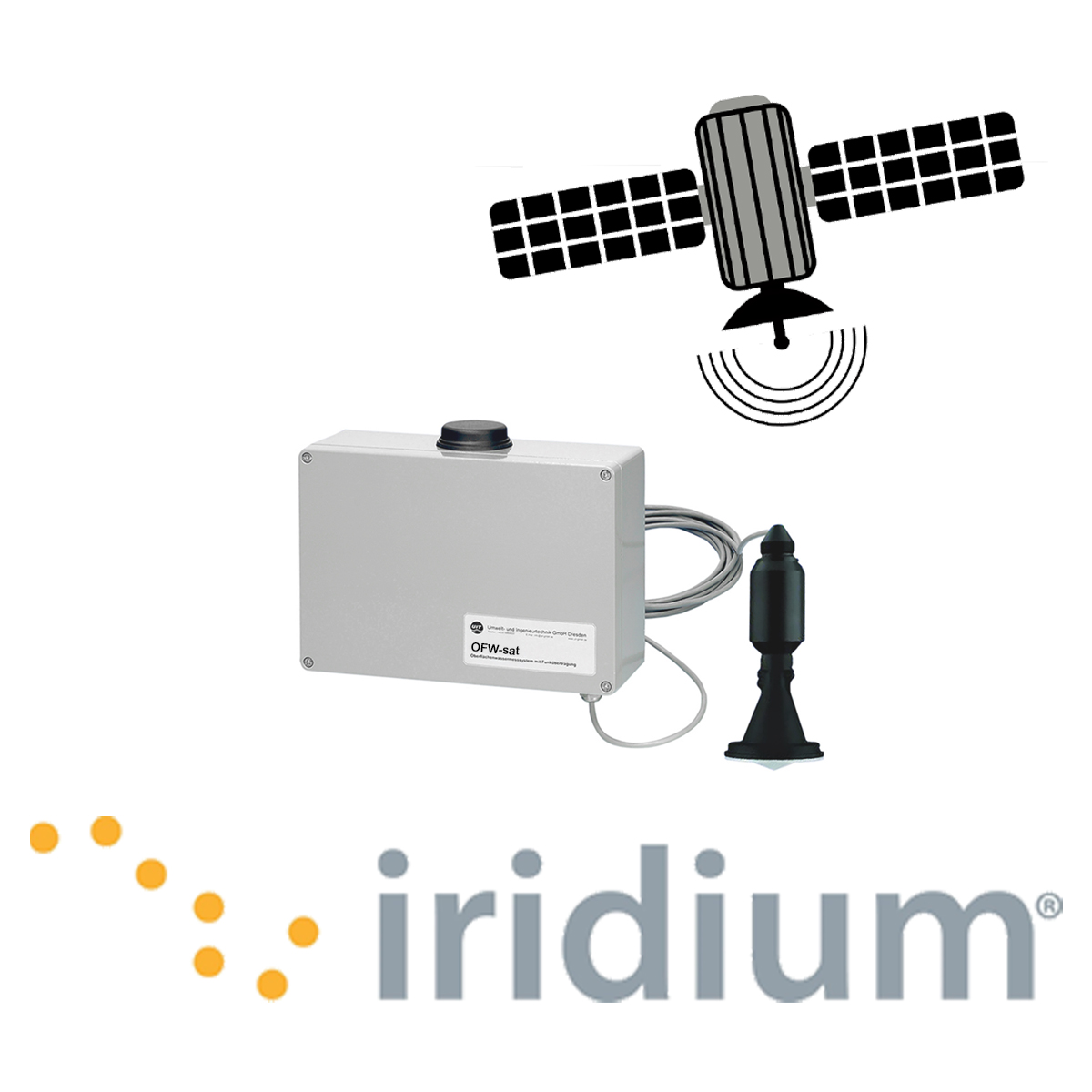

Surface water measurement system
The surface water measurement system OFW-sat is a stationary measurement system for non-contact water level
measurements using radar or ultrasonic sensors, including data loggers and remote data transmission technology - ideal
for early warning systems.
For more information about data logger click here.
For more information about software SENSOweb click here.
To request more information and prices call +49 351/88646-00 or e-mail us: info@uit-gmbh.de.
| Radar sensor | |
|---|---|
| Radar | 0.2 … 15 m – other ranges on request |
| Beam angle/ frequency | 10°/ K-band (26 GHz technology) or 8° (80 GHz technology) |
| Accuracy/ resolution | Accuracy +/- 2 mm add +/- 0.03 % FS/10 K/ Res. +/- 2 mm |
| Dimensions | Ø 75 mm, length 300 mm or Ø 79 mm ; screw G 1½”, length 109 mm (80 GHz) |
| Data logger LogTrans-field | |
| Inputs | analogue inputs/ 16 Bit resolution, 2 counter inputs |
| Interfaces | MODBUS, RS 485; RS 232 |
| Interfaces | USB 2.0 for parameterization – optional Bluetooth LE |
| Memory | 512 MB for data und 512 MB for images |
| Wireless data transfer |
|
| Alarm notification | Two channels with up to 6 alarm notifications |
| Power supply | Accumulator 12 V, 6.5 Ah for data logger and sensor |
| Case/dimensions | Aluminium 330 x 290 x 115 mm, incl. antenna, IP 65 |
| Alternative data loggers | see Link |
Illustrations and descriptions may vary. The plant / product is subject to change depending on technical updates.
We will gladly give you an individual offer.
