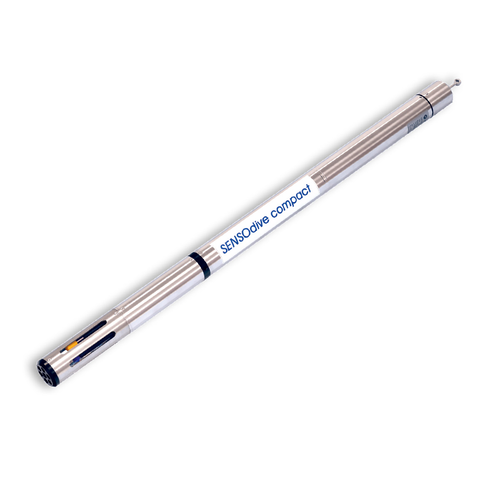

Multi-Sensor-Module SENSOdive-compact

The multi-sensor module SENSOdive-compact with remote data transmission technology and a stand-alone power supply is suitable for installation in groundwater observation wells from 2“ diameter or at surface water measuring points. The SENSOdive measuring system impresses with precise sensor technology and a powerful integrated data logger combined with ultra-low power consumption.

To request more information and prices call +49351/88646-00 or e-mail us: info@uit-gmbh.de.

  Sensors - 3 Sensors plus installable pressure and temperature and ext. sensors
  Absolute pressure sensor   800 ... 2,100 mbar; 800 ... 6,100 mbar; 800 ... 11,100 mbar
  Temperature sensor   0 °C ... 50 °C; resolution 0.04 °C
  Conductivity sensor   0 °C ... 20 mS/cm; resolution 1 μS/cm or 0 ... 0.2/2/20/500 mS/cm; resolution up to 0.1 μS/cm
  pH   1 ... 14; resolution ΔpH = 0.01
  Redox potential   –2,000 ... +2,000 mV; resolution 1 mV
  pH/ redox – combination sensor   pH 1 ... 14; redox –2,000 ... +2,000 mV
  DO [O2] – luminescence   0 ... 40 mg/l O2, resolution 0.02 mg/l O2
  Ion selective sensors   Chloride, nitrate, ammonia and bromide – specification upon request
  Technical data – SENSOdive – Probe plus Data logger
  Dimensions   Measurement probe: diameter: 48 mm; length: 900 mm
  Material with medium contact   Stainless steel; POM; PUR, EPDM, NBR, PE plus sensor materials
  Data logger   Integrated LogTrans6-compact, wireless transfer not usable
  Operating temperature range   0 °C ... 50 °C SENSOdive – no frozen water

Illustrations and descriptions may vary. The plant / product is subject to change depending on technical updates.

We will gladly give you an individual offer.

  • Probe diameter 48 mm
  • Integrated data logger LogTrans

Available parameters

  • pH/Redox potential (ORP)
  • Dissolved oxygen
  • Conductivity
  • Temperature
  • Pressure (water level)
  • Nitrate
  • Ammonium
  • Chloride
  • Bromide

Field of application

  • Compact unit for recording of water quality parameters for groundwater and surface water applications
  • Applicable from 2“ groundwater ob-servation wells
  • Integrated data logger
  • Integrated power supply based on just 4 pcs. of batteries
  • Use of industrial standard sensors

Advantages

  • Integrated data logger
  • Independent power supply
  • Use of standard industrial sensors
  • Up to 6 parameters can be measured
